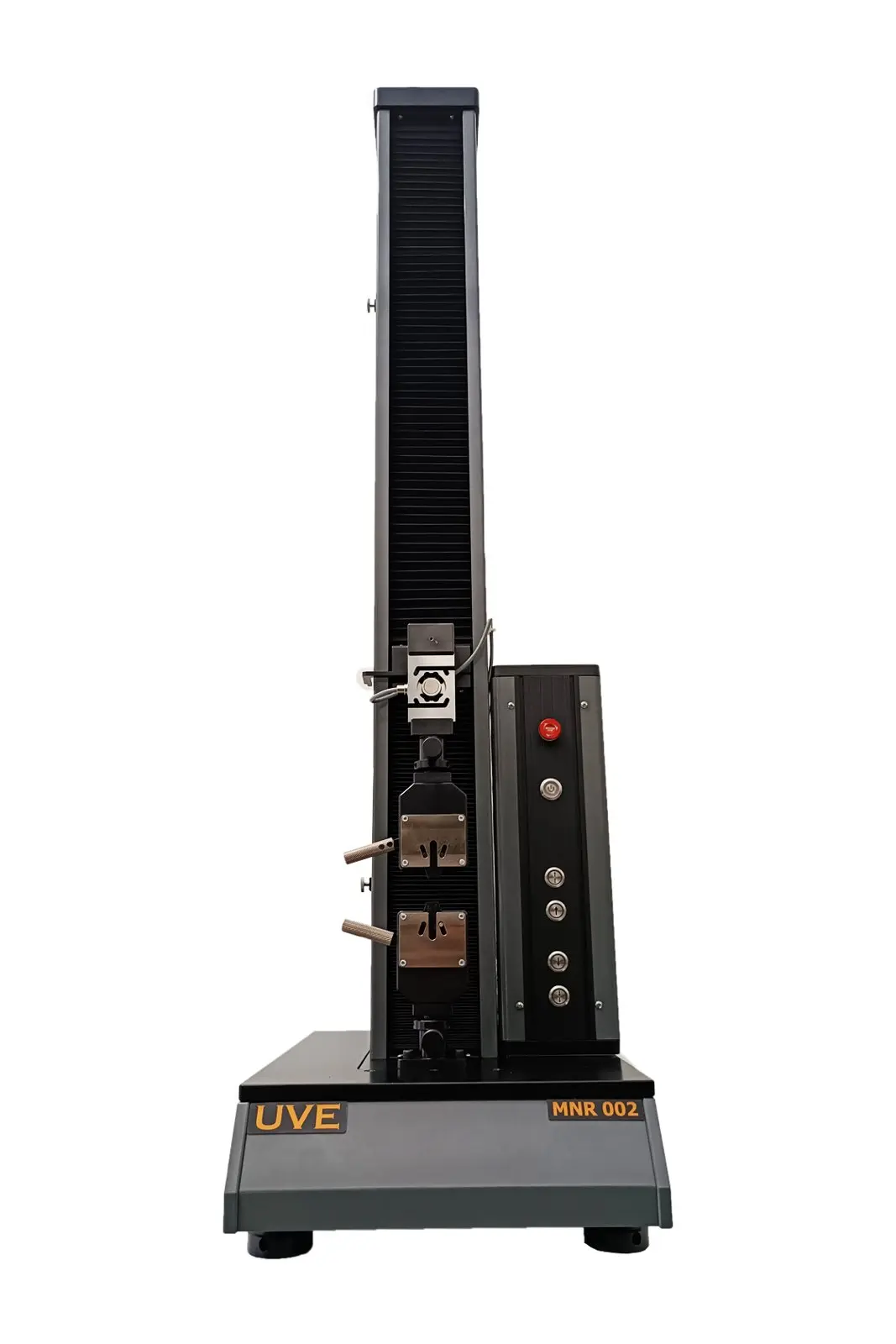

MNR-002 materials testing machine (2 kN)

Product / Laboratory equipment

A 2 kN single column model of the MNR series of universal materials testing machines. It runs on an AC servo-driven electromechanical drive, PLC control and UVESOFT test software, and procedures can be created for tension, compression, tear and cycle tests. The manufacturer states a load cell accuracy of class 0.5 according to ISO 7500-1. Grips and extensometer options are defined at the quotation stage.

Product code: MNR-002
Product group: Single column materials testing machines (1-5 kN)
Brand: UVE

Manufacturer website

Source: manufacturer website (opens in a new tab) · Image: manufacturer website

Technical specifications

MNR-002 materials testing machine (2 kN) technical specifications
Test capacity (kN)	2
Accuracy class	Class 0.5 according to ISO 7500-1
Drive system	AC servo motor, electromechanical
Control system	PLC controlled
Software	UVESOFT (Turkish/English)
Position repeatability (µm)	2
Maximum test speed (mm/min)	1000
Minimum test speed (mm/min)	0.0001
Distance between grip connection points (A) (mm)	750
Working height (B) (mm)	1380
Overall dimensions (W × D × H) (mm)	410 × 610 × 1250
Machine weight (kg)	120
Electrical connection	220 V, 50/60 Hz
Motor power (W)	< 500

Values are the manufacturer's statements.
