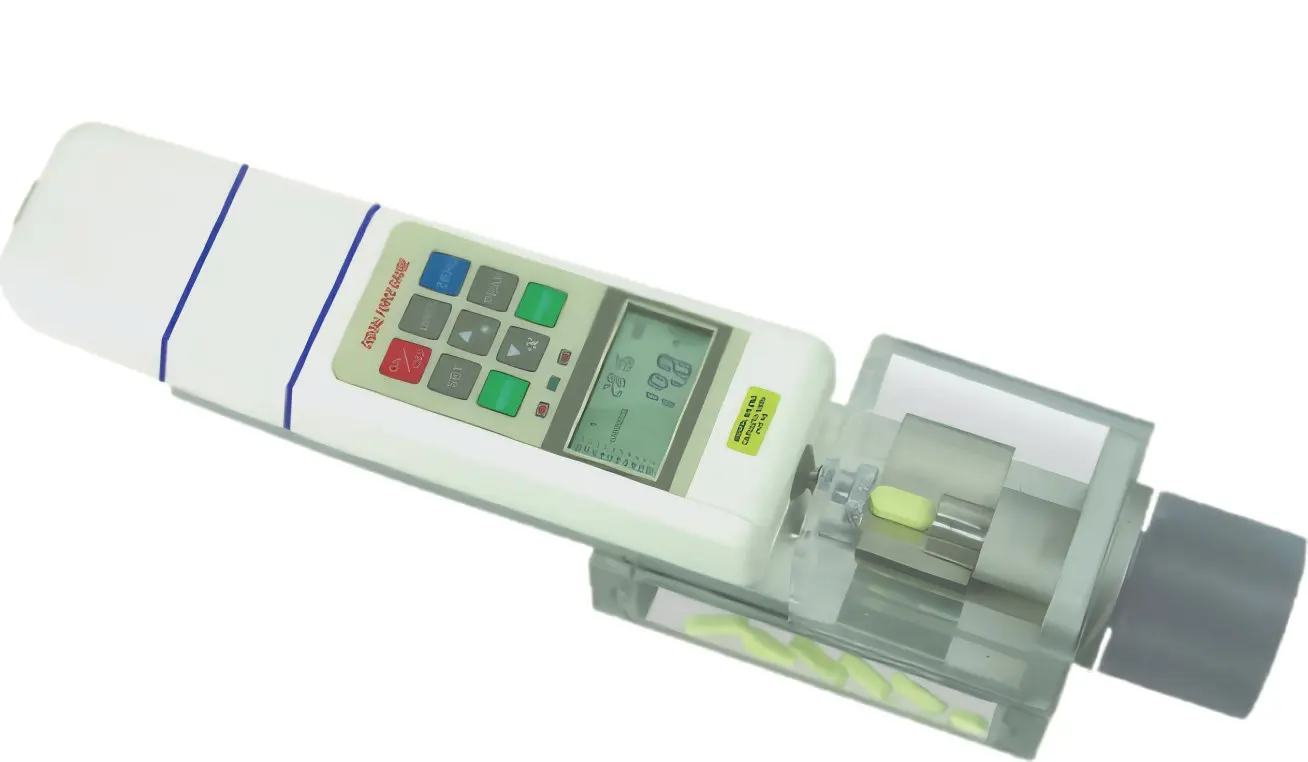

SPH-01 tablet hardness tester

SPH-01 tablet hardness tester
Product / Laboratory equipment

A load cell measures hardness up to 500 N, with the unit selectable as N, kgf or lbf. Upper (T1) and lower (T2) tolerance limits are programmable; ten test values are displayed and printed and the average of the stored values is calculated. A printer connects through the RS 232 port and the tester runs on a rechargeable battery. The manufacturer states that it complies with USP requirements.

Product code
SPH-01
Product group
Tablet testers
Manufacturer website (opens in a new tab)

Source: manufacturer website (opens in a new tab) · Image: manufacturer website

Technical specifications

SPH-01 tablet hardness tester technical specifications
Measuring rangeUp to 500 N
Minimum load (N)0.1
Accuracy±0.5% of full scale
Tablet size (mm)2–28 (length/diameter)
Measurement unitsN, kgf, lbf
InterfaceRS 232 (printer)
Power8.4 V, 1200 mAh rechargeable battery
Dimensions (L × W × H) (mm)355 × 91 × 76
Weight (kg)1.5 (net); 2.4 (gross)

Values are the manufacturer's statements.

Source: spectralab.biz (opens in a new tab) · Manufacturer product page, Specifications section. Values come from the manufacturer and are confirmed at the quotation stage.
